304SS Metal Honeycomb Conveyor Belt 20cm-200cm Width Honeycomb Belt Conveyor

Name: 304SS Metal Honeycomb Conveyor Belt 20cm-200cm Width Honeycomb Belt Conveyor
Brand: Hengshui Qualified Filter Screen Co., Ltd.
SKU: Na-20241230
Price: 37.00 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: COMESH

Model Number: Na-20241230

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: USD10~USD65 Per Meter

Packaging Details: Wooden box or carton

Delivery Time: 15 days

Payment Terms: L/C,D/A,D/P,T/T

Supply Ability: enough

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                304SS Metal Honeycomb Conveyor Belt, Metal Honeycomb Conveyor Belt 20cm, 200cm Width Honeycomb Belt Conveyor


Product Name:	Metal Conveyor Belt	Keyword:	Great Wall Wire Belt
Material:	304 316 Stainless Steel	Overall Belt Width:	20cm-200cm
Cross Rod Pitch:	25mm Etc	Cross Rod Diameter:	3mm
Up Opening Width:	10mm	Down Opening Width:	15mm
Flat Strip Thickness:	1.2mm	Flat Strip Height:	10mm
Accessories:	Roller Chain, Sprocket	Moq:	1 Meters
Edge Treatment:	Welding/bending	Working Temperature:	-30 °C To 400 °C
Color:	Silver	Keyword 1:	Great Wall Mesh Belt
Processing Method:	Processing Service Bending, Welding, Decoiling, Cutting, Punching	Feature:	High Opening Rate

Product Name:	Metal Conveyor Belt
Keyword:	Great Wall Wire Belt
Material:	304 316 Stainless Steel
Overall Belt Width:	20cm-200cm
Cross Rod Pitch:	25mm Etc
Cross Rod Diameter:	3mm
Up Opening Width:	10mm
Down Opening Width:	15mm
Flat Strip Thickness:	1.2mm
Flat Strip Height:	10mm
Accessories:	Roller Chain, Sprocket
Moq:	1 Meters
Edge Treatment:	Welding/bending
Working Temperature:	-30 °C To 400 °C
Color:	Silver
Keyword 1:	Great Wall Mesh Belt
Processing Method:	Processing Service Bending, Welding, Decoiling, Cutting, Punching
Feature:	High Opening Rate

Product Description

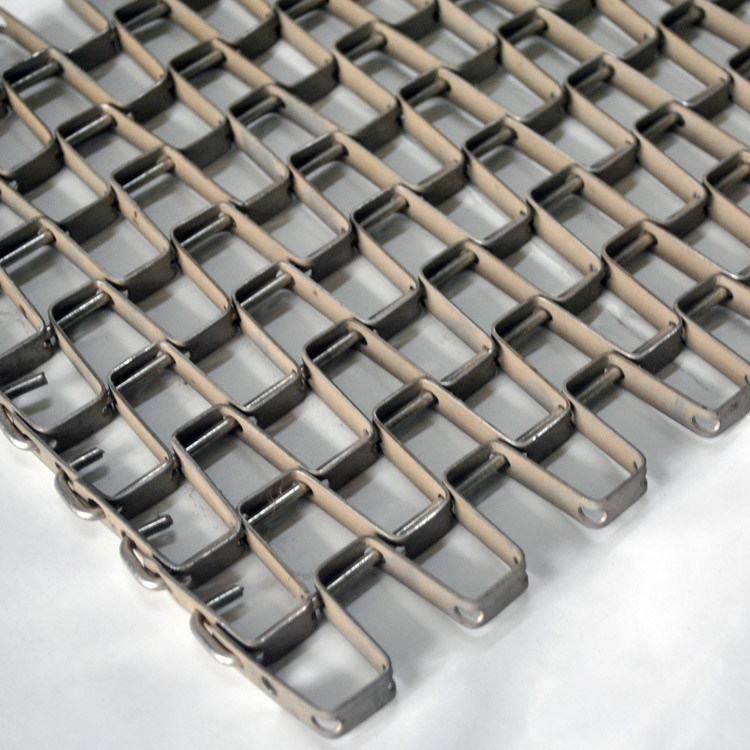

304SS Metal Honeycomb Conveyor Belt (20cm-200cm Width)

304 Stainless Steel Great Wall Honeycomb Metal Conveyor Belt for Food Processing

Product Description

The Great Wall mesh conveyor belt features a robust structure with steel belt weaving and support shaft reinforcement, designed for heavy-duty conveying in demanding environments.

Key Structural Features:

Steel belt weaving with support shaft reinforcement for high strength and stability
Welded or locked edges for enhanced durability and secure connections
Integrated baffle design (side and transverse) to prevent material spillage

Specifications

Edge Type Options

Product Features

High opening rate with excellent circulation and tight transmission
Cost-effective with high temperature and corrosion resistance
Long service life with minimal maintenance requirements
Uniform structure with precise mesh count and flat surface
Welded button edge or riveted edge options available
Smooth conveying surface with minimal friction
Easy installation, operation, and cleaning

Applications

Food processing: Cooking, baking, cooling, washing, drying, sterilizing
Glass industry: Annealing, baking, bottle conveying
Industrial applications: Cement, metallurgy, casting, chemical processing
High-temperature environments: As burn-resistant conveyor belts or mats

About Comesh Filter Co., Ltd.

Established in 1987 and located in Anping County (the hometown of wire mesh), Comesh Filter Co., Ltd. is a leading manufacturer of food-grade stainless steel spiral mesh and conveyor solutions. We specialize in custom wire mesh products for food processing, drying, baking, and filtration applications.
