275C Plate Link Conveyor Belt High Temperature Perforated Conveyor Belt Metal

Name: 275C Plate Link Conveyor Belt High Temperature Perforated Conveyor Belt Metal
Brand: Hengshui Qualified Filter Screen Co., Ltd.
SKU: ail250212
Price: 37.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: comesh

Model Number: ail250212

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: USD10~USD65 Per Meter

Packaging Details: plywood box

Delivery Time: 5-8days

Payment Terms: T/T

Supply Ability: 100m per month

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                275C Plate Link Conveyor Belt, Plate Link Conveyor Belt High Temperature, Perforated Conveyor Belt Metal


Production Name:	Metal Conveyor Belt	Key Words:	Perforated Plate Conveyor Belt
Size:	Customizable	Thickness Of Belt:	2.2–3.0 Mm.
Temperature Resistance:	High	Application:	Industrial
Temperature Range:	Up To 275°C.	Side Plate Height:	38.1, 50.8, 76.2, 101.6 Or 152.4mm
Usage:	Transporting Materials	Cross Rod Pitch:	4–33 Mm.
Length:	Customizable	Pitch Of Spirals:	2.8mm To 40mm.
Color:	Metallic	Cross Bar Pitch:	5 Mm To 50.8 Mm.
Strength:	Durable	Package Piercing Pin:	300 Mm
Spiral Diameter:	0.9–3.0 Mm.

Production Name:	Metal Conveyor Belt
Key Words:	Perforated Plate Conveyor Belt
Size:	Customizable
Thickness Of Belt:	2.2–3.0 Mm.
Temperature Resistance:	High
Application:	Industrial
Temperature Range:	Up To 275°C.
Side Plate Height:	38.1, 50.8, 76.2, 101.6 Or 152.4mm
Usage:	Transporting Materials
Cross Rod Pitch:	4–33 Mm.
Length:	Customizable
Pitch Of Spirals:	2.8mm To 40mm.
Color:	Metallic
Cross Bar Pitch:	5 Mm To 50.8 Mm.
Strength:	Durable
Package Piercing Pin:	300 Mm
Spiral Diameter:	0.9–3.0 Mm.

Product Description

275C Plate Link Conveyor Belt High Temperature Perforated Conveyor Belt Metal

High Temperature Resistance Chain Plate Link Metal Conveyor Belt With Customized Size

Metal Conveyor Belt Description

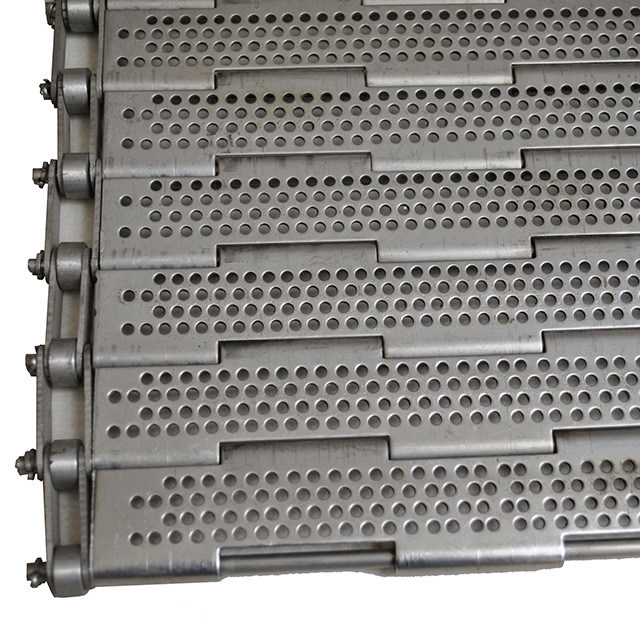

Perforated plate is combined with continuously perforated chain plates. The holes on the surface provide excellent heat dissipation performance for conveying products such as biscuits, breads and other hot products. Perforations allow the opening in the belt to vary from zero to very large.

Metal Conveyor Belt Specification

Product Name	High temperature resistance stainless steel carbon steel metal chain plate link conveyor belt with customized size
Material	Stainless steel, carbon steel metal chain plate
Plate Thickness	0.8 mm, 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 5mm, etc Customers can choose as per load capacity requirements
Connection rod diameter	5 mm, 6 mm, 8 mm, 10 mm, 12 mm
Rod pitch	19.05 mm, 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 76.2 mm, 101.6mm
Apron width	200 mm to 4000 mm (max width limited by laser cutting machine capacity)
Supporting Roller	Can be added on bottom side to support more load capacity (recommended for wider belts)
Baffle	Can be added on side or middle part of conveyor belt

Metal Conveyor Belt Features

Available in two types: perforated chain plate conveyor belt and non-perforated chain plate conveyor belt
Strong load capacity with plate thickness ranging from 0.8mm-5mm or thicker depending on requirements
Customizable size with expert recommendations available
Customizable baffles can be added on side or middle part
Supporting rollers can be added to enhance load capacity

Metal Conveyor Belt Applications

Cooling systems
Washing systems
Waste treatment systems
Blanching systems
Sieve systems
Drying systems
Hengshui Qualified Filter Screen Co., Ltd Main Products:
Baking Rack Trolley, Metal Conveyor Belt, Wire Conveyor Belt , Mesh Conveyor Belt ,Decorative Wire Mesh , Nylon Filter Mesh ,Polyester Mesh, Metal Wire Mesh, Baking Tray Trolley, Bakery Tray Rack Trolley, Stainless Steel Mesh Tray, Oven Rack Tray , Aluminium Baking Tray
The main types of are Metal Conveyor Belt
metal conveyor belt / wire conveyor belt / mesh conveyor belt / wire belt / wire mesh conveyor belt / wire mesh belt / metal conveyor belt manufacturers / wire mesh conveyor / stainless steel wire mesh conveyor belt / wire mesh belt manufacturers / flat wire belt / flat wire conveyor belt / stainless steel mesh conveyor belt / mesh conveyor / wire mesh conveyor belt manufacturers / metal mesh conveyor belt / wire mesh belt company / steel belt conveyor manufacturers / steel mesh conveyor belt / metal scrap conveyors / / steel belt conveyors / metal mesh belt / wire conveyor / metal conveyor belt mesh / ss wire mesh conveyor belt / polyester mesh conveyor belt / wire conveyor belt manufacturers / metal chain conveyor belt / net conveyor belt / mesh conveyor belt manufacturers / stainless steel mesh belt / flat flex belt / conveyor wire mesh belt / stainless mesh conveyor belt / mesh belting / stainless steel flat wire conveyor belt / alloy wire belt / wire mesh chain conveyor / conveyor belt steel / conveyor belt wire / conveyor belt wire mesh / conveyor metal belt / conveyor wire / conveyor wire belt / flat wire mesh belt / flat wire mesh conveyor belt / mesh belt manufacturers / mesh conveyor chain / mesh type conveyor belt / net conveyor // scrap metal conveyor belt / spiral mesh belt / ss wire mesh conveyor / stainless steel conveyor belt price / stainless steel mesh conveyor / / stainless steel spiral wire mesh conveyor belt / stainless steel wire belt / stainless steel wire conveyor belt / steel mesh belt / steel wire belt / steel wire conveyor belt / wire mesh conveyor belt price / wire belt coltd / wire mesh conveyor belt suppliers / wire mesh conveyor chain / woven wire belt conveyor / woven wire conveyor belt
Good quality, professional after-sales service, welcome to order
