Chain Balanced Weave Conveyor Belt Metal Conveyor Belt 50KG-100KG Load

Name: Chain Balanced Weave Conveyor Belt Metal Conveyor Belt 50KG-100KG Load
Brand: Hengshui Qualified Filter Screen Co., Ltd.
SKU: zora250216
Price: 37.00 USD
Availability: InStock

Product Details

Place of Origin: hebei

Brand Name: comesh

Certification: FDA

Model Number: zora250216

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: USD10~USD65 Per Meter

Packaging Details: wooden box 180*120*65cm

Delivery Time: 20days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 50meters 15days

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Chain Balanced Weave Conveyor Belt, Metal Conveyor Belt 50KG, Metal Conveyor Belt 100KG Load


Product Name:	Compound Weave Conveyor Belts For Biscuits, Tortillas, Cookies And Crackers Baking	Keyword:	Honeycomb Conveyor Belts
Common Material:	304/316/316L Stainless Steel	Wire Type:	Round,Flat
Side Process:	Welding,With Chain	Load-bearing:	50KG,100KG ......
Application:	Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club	Feature:	Single Row, Double Row
Width:	200 Mm To 4000 Mm, There Has Limitation For Laser Cutting Machine, So Max Width We Can Process At Present Is 4000mm	Baffle:	Baffle Can Be Added On Side Or On The Middle Part Of The Conveyor Belt
Rod Dia:	1-20mm Or Customized	Speed:	Adjustable
Surface Treatment:	Polishing	Technique :	Welding
Color:	Silver	Adavantage:	Longer Life,Food Grade,High Duty,Heat Resistant,Non-corrosive,Smooth Functioning,Precision-designed,Easy Maintenance

Product Name:	Compound Weave Conveyor Belts For Biscuits, Tortillas, Cookies And Crackers Baking
Keyword:	Honeycomb Conveyor Belts
Common Material:	304/316/316L Stainless Steel
Wire Type:	Round,Flat
Side Process:	Welding,With Chain
Load-bearing:	50KG,100KG ......
Application:	Bakery Ovens, Food Equipment, Restaurant Cafe Hotel Club
Feature:	Single Row, Double Row
Width:	200 Mm To 4000 Mm, There Has Limitation For Laser Cutting Machine, So Max Width We Can Process At Present Is 4000mm
Baffle:	Baffle Can Be Added On Side Or On The Middle Part Of The Conveyor Belt
Rod Dia:	1-20mm Or Customized
Speed:	Adjustable
Surface Treatment:	Polishing
Technique :	Welding
Color:	Silver
Adavantage:	Longer Life,Food Grade,High Duty,Heat Resistant,Non-corrosive,Smooth Functioning,Precision-designed,Easy Maintenance

Product Description

Chain Balanced Weave Conveyor Belt Metal Conveyor Belt 50KG-100KG Load

Compound Weave Conveyor Belts For Biscuits, Tortillas, Cookies And Crackers Baking

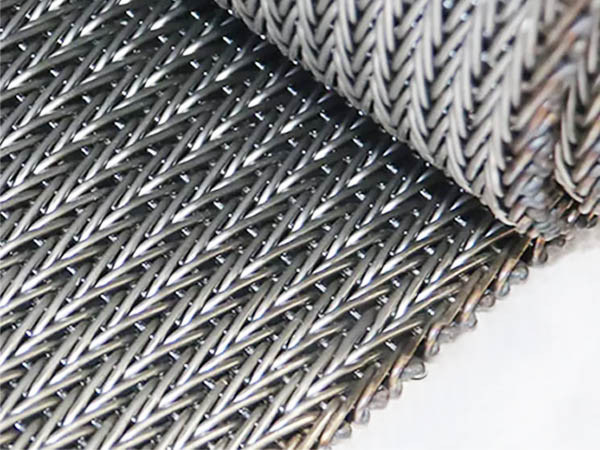

The compound belt is a high-density, balanced spiral belt with multiple spirals and cross rods per pitch, resulting in minimal apertures and a flat surface. This structure ensures a close and flat mesh, ideal for conveying very small items. Its uniform heat transfer and smooth surface make it perfect for applications like biscuit baking and sorting small mechanical components. Popular for its durability and efficiency, the compound weave is a top choice in various industries, including food processing and precision manufacturing.

Compound Weave Conveyor Belts Features

Belt edge has no catch points, no welds
Twice the life of competitive belts
Installation requires no special tools
Positive driven for excellent belt tracking
Up to 81% open area for excellent flow through
Allows for tight transfers
Available up to 150 inches wide
High strength-to-weight ratio
Welded button edge or clinched edge
Flat carrying surface
Easy to clean and to install

Compound Weave Conveyor Belts Applications

Food Processing: Used in the transport of packaged goods, meat, poultry, and baked products, ensuring hygiene and easy cleaning.
Beverage Industry: Ideal for bottling lines, they handle both empty and filled bottles efficiently, providing smooth transitions.
Cold Chain Logistics: Suitable for refrigerated environments, transporting perishable goods while maintaining temperature control.

Generally, the material used to make the Compound Weave Conveyor Belts is stainless steel or high carbon steel. Compound weave conveyor belts made from 304 and 316 stainless steel are typically used in the food industry due to their hygienic properties, while those made from 310S and 314 stainless steel are preferred in the heat treatment industry for their high temperature and oxidation resistance.

310S and 314 stainless steel wire offer high temperature resistance, strong oxidation resistance, and excellent mechanical properties. These features make mesh conveyor belts made from 310S and 314 stainless steel ideal for addressing high temperature issues in powder metallurgy furnaces. These belts resist short cycles, peeling, and fractures, and can withstand temperatures up to 1000-1250°C.

Compound Weave Conveyor Belts Specification

Please refer to the following drawing and tell us the size you need.

Product Name	Compound Weave Conveyor Belts For Biscuits, Tortillas, Cookies And Crackers Baking
Material	Stainless steel, carbon steel or as your request
Wire diameter	0.8 mm, 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm, 5mm, etc. Customers can choose as per load capacity requirements
Width	200 mm to 4000 mm, there has limitation for laser cutting machine, so max width we can process at present is 4000mm
Supporting roller	Supporting rollers can be added on bottom side of the conveyor belt to support more load capacity (for width of the conveyor belt is big, we suggest adding this)

Material Availability

Material	Maximum Operating Temperature °C
Carbon Steel	550
Galvanised Mild Steel	400
Chrome Molybdenum	700
304 Stainless Steel	750
321 Stainless Steel	750
316 Stainless Steel	800
316L Stainless Steel	800
314 Stainless Steel	1120

Belt Types

Round spiral wire compound weave conveyor belt
In this format both coil and cross wires are of round section.

Flat spiral wire compound weave conveyor belt
In this format both coil and cross wires are of flat section. These styles are most useful to gain more surface area when handling small base area products.

Edge Type

Compound weave conveyor belt with welded edge

Compound weave conveyor belt with chain edge

Compound weave conveyor belt with side guard edge

Compound weave conveyor belt with folded side guard edge

FAQ

Q1. Are you a factory or trading company?

A: We are both factory and trade company

Q2. How to place an order?

A: Once you find the US, you can place an order on Ali or signed a contract with the US. 30% deposit is charged before customized fabric are manufactured

Q3. What about payment terms?

A: T/T, L/C, Western Union, Escrow, Paypal, and some other payment terms are accepted.

Q4. What about the shipping date?

A: The shipping date would be in 15 days after contract confirmed, except customized fabric.
