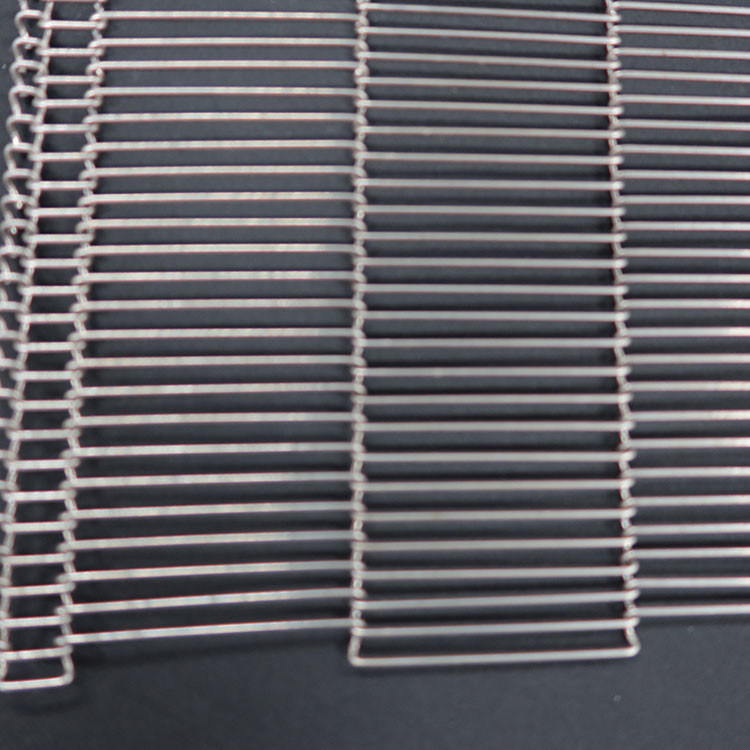

Ladder Link Wire Mesh Conveyor Belt 5mm To 15mm Chain Pitch

Name: Ladder Link Wire Mesh Conveyor Belt 5mm To 15mm Chain Pitch
Brand: Hengshui Qualified Filter Screen Co., Ltd.
SKU: AIL250212
Price: 37.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: COMESH

Model Number: AIL250212

Payment & Shipping Terms

Minimum Order Quantity: 1 meter

Price: USD10~USD65 Per Meter

Packaging Details: plywood box

Delivery Time: 5-8days

Payment Terms: T/T

Supply Ability: 100m per month

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                Link Wire Mesh Conveyor Belt, Ladder Link Wire Conveyor Belt, 15mm Chain Pitch Conveyor Belt


Key Words:	Wire Mesh Conveyor Belt	Production Name:	Wire Conveyor Belts
Chain Pitch:	5mm To 15mm	Spiral Pitch:	2.4 Mm To 100 Mm
Pitch Of Spirals:	2.8mm To 40mm.	Surface:	Bright Silver
Width:	0.3 Mm To 1.5 Mm	Edge Treatment:	Polishing
Applications:	Food Grade

Key Words:	Wire Mesh Conveyor Belt
Production Name:	Wire Conveyor Belts
Chain Pitch:	5mm To 15mm
Spiral Pitch:	2.4 Mm To 100 Mm
Pitch Of Spirals:	2.8mm To 40mm.
Surface:	Bright Silver
Width:	0.3 Mm To 1.5 Mm
Edge Treatment:	Polishing
Applications:	Food Grade

Product Description

Ladder Link Wire Mesh Conveyor Belt 5mm To 15mm Chain Pitch

Ladder Link Wire Conveyor Mesh Belt For Cooking

Wire Conveyor Belts Description

Flat-Flex conveyor belts have over 85 years of trusted performance, promoting maximum flow-through for many applications in various industries. Flat-Flex belts are USDA Accepted and designed to be cleaned-in-place. With more than five thousand belt configurations available, Flat-Flex belts can vary in materials used, wire diameter, spacing, design pattern and lateral width.

Stainless steel 304 / 316 / 316L wire mesh metal conveyor belt for food industry.

Wire Conveyor Belts Specification

Item	Wire diameter (mm)	Pitch (mm)	Open area (%)	Edge type
FFCB-01	0.9	4.24	77	Single/double
FFCB-02	0.9	5.64	82	Single/double
FFCB-03	1	5.5	79	Single/double
FFCB-04	1	5.6	79.5	Single/double
FFCB-05	1.27	4.3	67	Single
FFCB-06	1.27	5.5	73	Single/double
FFCB-07	1.27	6	76	Single/double
FFCB-08	1.27	6.35	77	Single/double
FFCB-09	1.27	7.26	80	Single/double/C-shape
FFCB-10	1.4	6.4	76	Single/C-shape
FFCB-11	1.6	7.26	75	Single/double/C-shape
FFCB-12	1.83	12	81	Single
FFCB-13	1.83	12.7	82	Single/C-shape
FFCB-14	2.08	9.6	75	Single/C-shape
FFCB-15	2.35	12.7	78	Single/C-shape
FFCB-16	2.35	20.32	85	Single
FFCB-17	2.8	12.7	72	Single/C-shape

Note: Custom specification is available if you can't find the suitable size.

Wire Conveyor Belts Advantage

The largest proportion of open-mesh area available - up to 86%
Easy to clean, clean-in-place design
No-slip, positive drive
Very low belt mass
Smallest diameter end rolls and drive rolls
Positive driven for accurate tracking
USDA Accepted

Wire Conveyor Belts Application

1. The product scope of application: quick-frozen, baking machinery plane conveyor, screw conveyor, food machinery, cleaning, sterilization, drying, cooling, cooking, annealing, roast flowers, transportation in glass machinery bottles, etc.

2. All kinds of pipeline conveying.

3. Glass industry is widely used in annealing LuWang, roast flowers LuWang, etc.

4. Food processing industry, dehydrated vegetables, frozen food IQF machine pretreatment mesh belt, chain network.

5. Powder metallurgy, metal heat treatment, hardening, sintering, brazing, roasting, bright, black, bearing, carburizing high-temperature LuWang belt, baffle type drying conveyor mesh belt, mesh belt, foam nickel reduction net belt production line, washing machine, hoisting machine, drying machine, dryer. Each delivery such as process equipment.

Hengshui Qualified Filter Screen Co., Ltd Main Products: Baking Rack Trolley, Metal Conveyor Belt, Wire Conveyor Belt , Mesh Conveyor Belt ,Decorative Wire Mesh , Nylon Filter Mesh ,Polyester Mesh, Metal Wire Mesh, Baking Tray Trolley, Bakery Tray Rack Trolley, Stainless Steel Mesh Tray, Oven Rack Tray , Aluminium Baking Tray

The main types of are Wire Conveyor Belt

metal conveyor belt / wire conveyor belt / mesh conveyor belt / wire belt / wire mesh conveyor belt / wire mesh belt / metal conveyor belt manufacturers / wire mesh conveyor / stainless steel wire mesh conveyor belt / wire mesh belt manufacturers / flat wire belt / flat wire conveyor belt / stainless steel mesh conveyor belt / mesh conveyor / wire mesh conveyor belt manufacturers / metal mesh conveyor belt / wire mesh belt company / steel belt conveyor manufacturers / steel mesh conveyor belt / metal scrap conveyors / / steel belt conveyors / metal mesh belt / wire conveyor / metal conveyor belt mesh / ss wire mesh conveyor belt / polyester mesh conveyor belt / wire conveyor belt manufacturers / metal chain conveyor belt / net conveyor belt / mesh conveyor belt manufacturers / stainless steel mesh belt / flat flex belt / conveyor wire mesh belt / stainless mesh conveyor belt / mesh belting / stainless steel flat wire conveyor belt / alloy wire belt / wire mesh chain conveyor / conveyor belt steel / conveyor belt wire / conveyor belt wire mesh / conveyor metal belt / conveyor wire / conveyor wire belt / flat wire mesh belt / flat wire mesh conveyor belt / mesh belt manufacturers / mesh conveyor chain / mesh type conveyor belt / net conveyor // scrap metal conveyor belt / spiral mesh belt / ss wire mesh conveyor / stainless steel conveyor belt price / stainless steel mesh conveyor / / stainless steel spiral wire mesh conveyor belt / stainless steel wire belt / stainless steel wire conveyor belt / steel mesh belt / steel wire belt / steel wire conveyor belt / wire mesh conveyor belt price / wire belt coltd / wire mesh conveyor belt suppliers / wire mesh conveyor chain / woven wire belt conveyor / woven wire conveyor belt

Good quality, professional after-sales service, welcome to order
