Product Details
Place of Origin: China
Brand Name: comesh
Model Number: ail0212
Payment & Shipping Terms
Minimum Order Quantity: 1 meter
Price: USD10~USD65 Per Meter
Packaging Details: paywood box
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 100m per month

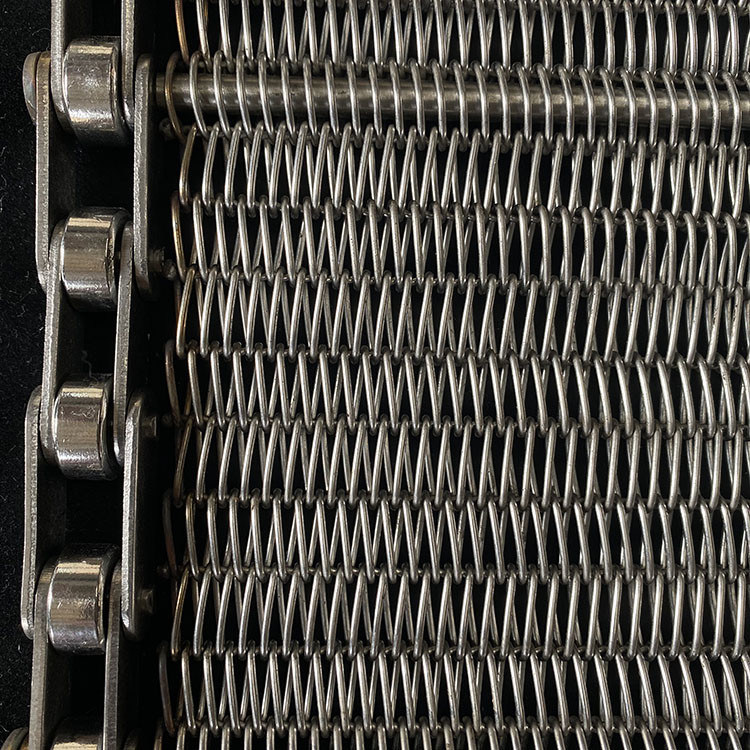

Production Name: |
Wire Mesh Conveyor Belt |
Key Words: |
Stainless Steel Wire Mesh Conveyor Belt |
Belt Type: |
Sprockets Driven Directly |
Cross Wire Pitch: |
12 Mm , Or Customized |
Width Or Diameter: |
1-3mm |
Belt Width: |
150mm - 3000mm |
Type: |
Flat Wire Belt |
Hot Search: |
Wire Mesh Conveyor Belt |
Temperature Resistance: |
Up To 1200°C |
Load Capacity: |
50kg - 500kg |
Strip Width: |
10 Mm - 20 Mm |
Surface Treatment: |
Galvanized/Polished |
Accessories: |
With Accessories |
Production Name: |
Wire Mesh Conveyor Belt |
Key Words: |
Stainless Steel Wire Mesh Conveyor Belt |
Belt Type: |
Sprockets Driven Directly |
Cross Wire Pitch: |
12 Mm , Or Customized |
Width Or Diameter: |
1-3mm |
Belt Width: |
150mm - 3000mm |
Type: |
Flat Wire Belt |
Hot Search: |
Wire Mesh Conveyor Belt |
Temperature Resistance: |
Up To 1200°C |
Load Capacity: |
50kg - 500kg |
Strip Width: |
10 Mm - 20 Mm |
Surface Treatment: |
Galvanized/Polished |
Accessories: |
With Accessories |
Wire Mesh Belt Machines use up and down blast from the wheels allowing the abrasive to hit all sides of the part. This is especially useful for hollow or odd-shaped smaller parts. Either a continuous belt can be used with an entrance and exit conveyor for automated operation or can be a table with an operator loading and unloading with continuous blasting.
| Item No. | Spiral wire pitch (mm) | Cross rod pitch (mm) | Spiral wire diameter (mm) | Cross wire diameter (mm) |
|---|---|---|---|---|
| BWCB-001 | 4 | 4 | 0.9 to 1.2 | 1.2 to 1.6 |
| BWCB-002 | 5 | 6.4 | 0.9 to 1.2 | 1.2 to 1.6 |
| BWCB-003 | 5 | 5 | 0.9 to 1.6 | 1.2 to 1.6 |
| BWCB-004 | 6 | 6 | 0.9 to 1.6 | 1.2 to 1.6 |
| BWCB-005 | 6 | 8 | 0.9 to 1.2 | 1.2 to 1.6 |
| BWCB-006 | 6 | 10 | 0.9 to 1.6 | 1.2 to 1.6 |
| BWCB-007 | 8 | 12 | 1.2 to 2.0 | 1.2 to 2.5 |
| BWCB-008 | 8 | 13 | 1.2 to 2.0 | 1.2 to 2.5 |
| BWCB-009 | 8 | 15 | 1.2 to 2.0 | 1.2 to 2.5 |
| BWCB-010 | 11 | 15 | 1.2 to 2.0 | 1.2 to 2.5 |
| BWCB-011 | 11 | 20 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-012 | 11 | 25 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-013 | 11 | 27 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-014 | 15 | 20 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-015 | 15 | 25 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-016 | 22 | 23 | 1.6 to 3.0 | 1.6 to 3.0 |
| BWCB-017 | 22 | 33 | 1.6 to 3.0 | 2.0 to 4.0 |
Note: 1. If flat wire, please provide cross section.
2. Custom specifications are available if you can't find the suitable size.
