Stainless Steel 304 316 Z-Shape Ladder Wire Mesh Chain Ladder Chocolate Oven Conveyor Belt

Stainless Steel 304 316 Z-Shape Ladder  Wire Mesh Chain Ladder Chocolate Oven Conveyor Belt

 Conveyor Belt description

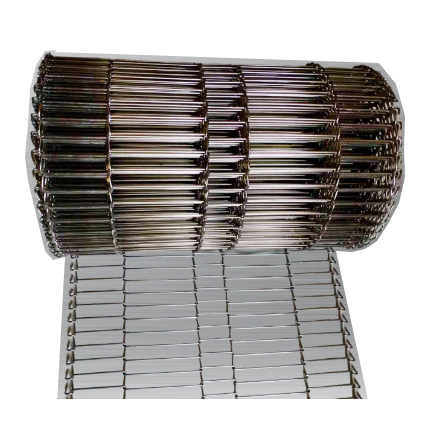

Ladder wire mesh conveyor belt is also known as Z-surface metal mesh belt, rod mesh belt, ladder belt, 45° 90° 180° mesh belt, flat flexible conveyor belt, Enrober conveyor belt.
This mesh belt has a large opening area (opening 67.5-86%) and good air permeability, which improves the efficiency of cooling, heating, drainage and drying performance. It is flexible and stable, suitable for various conveying equipment, ensuring smooth material transmission, and is an ideal metal conveyor belt for light conveying. The wire mesh conveyor belt usually has a single-layer structure, is lighter, and is driven by a sprocket. The pitch, total width, wire diameter, side width, material and length of the mesh belt can be customized according to customer needs.
In addition to the straight mesh belt, we also provide curved mesh belt, which is suitable for conveying process at corners. Its unique tapered pitch, minimum inner turning radius and tightest horizontal transmission make it the first choice for many corner processes.

 Conveyor Belt Specifications

Belt types of ladder conveyor belt

Edge types of z type belt conveyor

The chocolate coating conveyor belt can be formed into different edge types, which can suit different equipment and driven types. You can choose the perfect one type for you.

● With a C-shaped Edge, reduce the ratio of catching and tangling by the belt edge.

● With a Single Loop Edge, the most popular wire mesh belt edge finish. It is available for wire diameter 1.27 mm or above

● With a Double Loop Edge, supplied for enrober belts.

Chocolate Conveyor Belt Feature

• Sprocket drive, smooth operation;

• Small rotation diameter, ensuring smooth product transmission;

•  Large opening area, up to 86%, to achieve maximum flow, ensuring high air permeability and dehydration capacity;
