Chocolate Conveyor Belt description

Stainless steel flat-flax wire belt for biscuit conveyor machines adopted hard SS304,SS316 and spring wire,many advantages about the wire belt like good open area,smooth surface and light weight,flat flex wire belt widely used in food processing include biscuit,chocolate,enrober,cooling,drying,bread baking.
The wire belts are custom made by requirements and wire diameter from 0.8 mm to 3.0 mm.We design and make the full mesh belt conveyor for food processing,electronic products.Flat flex wire belt is driven by nylon sprocket and stainless steel sprockets,the sprockets are designed by different specification wire belts.

1.The mainly material if 304 stainless steel wires from 1-3 mm

Chocolate Conveyor Belt Specifications

Belt types of ladder conveyor belt

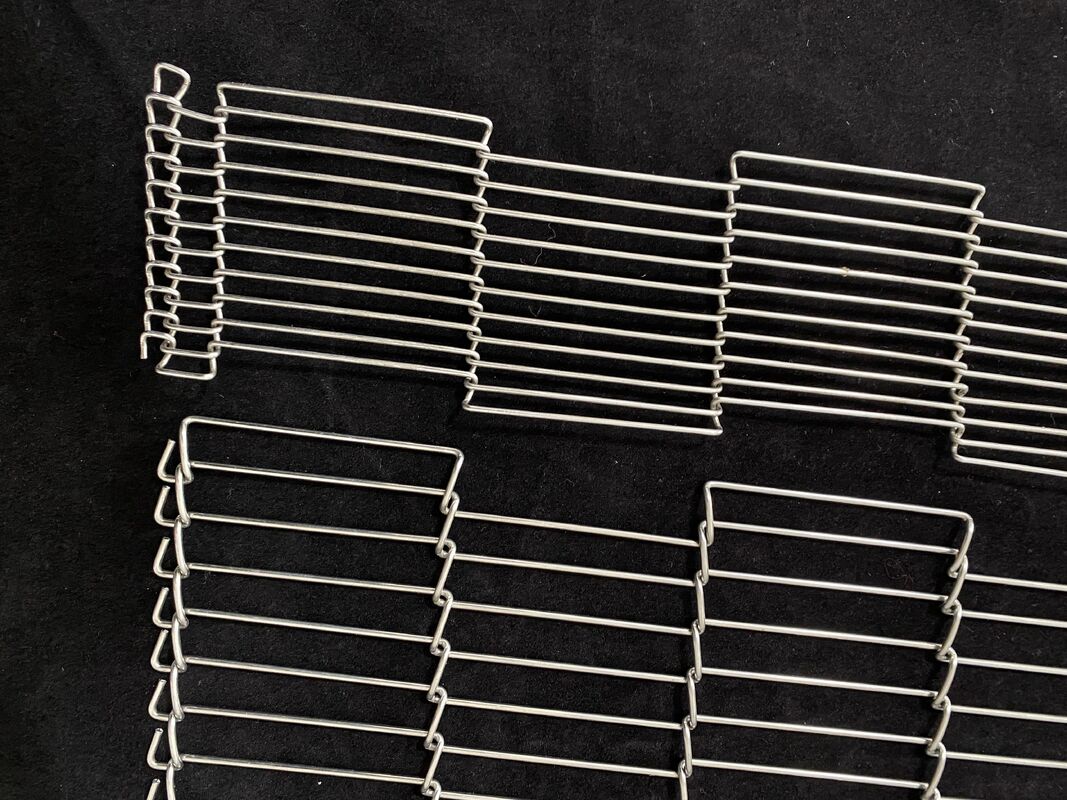

Edge types of z type belt conveyor

The chocolate coating conveyor belt can be formed into different edge types, which can suit different equipment and driven types. You can choose the perfect one type for you.

● With a C-shaped Edge, reduce the ratio of catching and tangling by the belt edge.

● With a Single Loop Edge, the most popular wire mesh belt edge finish. It is available for wire diameter 1.27 mm or above

● With a Double Loop Edge, supplied for enrober belts.

Chocolate Conveyor Belt Feature

1. Type B conveyor belt has a strong conveying capacity: The curved side plate structure makes it highly effective in pushing and scraping bulk materials,especially in chutes or floor trenches.
2. Type B conveyor belt accessories are easy to install.: The curved side plates provide a natural and sturdy platform for installing various functional attachments, enhancing its versatility.
3. Type B conveyor belt has a robust and durable structure.: Typically made of high-quality alloy steel and heat-treated, it offers high tensile strength and wear resistance, enabling it to withstand heavy loads and impact forces.
4. Self-cleaning ability of Type B conveyor belts: When handling certain non-sticky materials, its moving mechanism helps prevent material accumulation and clogging.
5. The multi-functionality of Type B conveyor belts: It is suitable not only for horizontal conveying but also often used in inclined or even vertical lifting applications occasions.

• Easy to Clean: The smooth surface and open mesh structure prevent impurities from remaining, making it easy to clean.



  High Flexibility: Made of high-strength flexible stainless steel wire, it has a single small-edge structure (the most commonly used), and a double small-edge design can be used for straight conveyor belts or for turning conveyors.



  Longevity: The stainless steel material is resistant to corrosion and wear, and the mesh belt is durable, reducing the frequency of replacements and the long-term operating costs.



  Extremely High Ventilation Rate: The regular mesh structure ensures an opening rate of over 70%, allowing air, liquids or heat to pass through uniformly and without obstruction, achieving efficient heat exchange and cooling.



  Large Mesh Size: During processes such as cleaning and frying, water and oil can flow smoothly through the mesh holes, facilitating product drying and oil control, thereby enhancing food quality.
